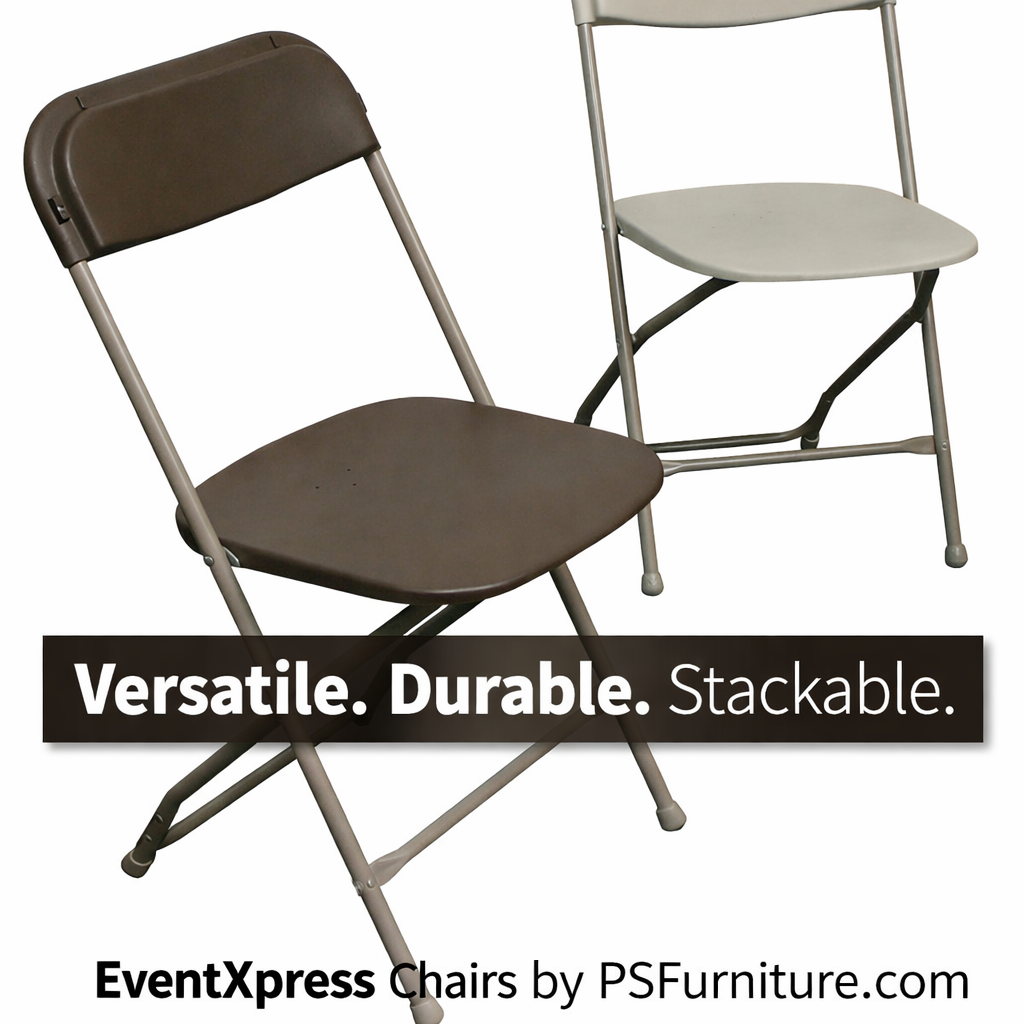

PS Furniture EventXpress™ C600 Folding Chair
The EventXpress™ C600 Folding Chair from PS Furniture is a commercial-grade folding chair designed for large-scale seating applications such as assemblies, events, schools, and multipurpose venues. Rather than focusing on aesthetics alone, the chair’s design emphasizes structural durability, transport efficiency, and ease of storage—three factors that are critical in environments where seating is frequently deployed and removed.
This article examines the chair from a technical and engineering perspective, evaluating its materials, structural design, load capacity, and practical performance characteristics.
Structural Frame Design
The primary structural component of the C600 chair is a tubular steel frame fabricated from 18-gauge cold-rolled steel tubing with a diameter of approximately ¾ inch. This gauge and tubing diameter are typical of commercial folding chairs intended for repeated use in institutional settings.
Cold-rolled steel provides consistent dimensional accuracy and increased hardness compared with hot-rolled steel. In this chair, the specified steel hardness rating (approximately 85 Rockwell B) helps improve resistance to deformation under load.
The steel components are chemically treated in a phosphate wash process before finishing. This treatment improves corrosion resistance and enhances paint adhesion before the frame receives a baked epoxy powder-coat finish, which protects the metal from abrasion, scratching, and oxidation.
Mechanical Assembly
Several different fasteners are used in the chair’s assembly:
- 6.2 mm steel rivets secure structural bracing components to the frame
- 5.2 mm zinc-plated screws attach the seat to the frame
- 4.0 mm screws attach the backrest to the frame
This multi-fastener approach serves two purposes:
- Rivets provide permanent, vibration-resistant joints at high-stress pivot points.
- Screws allow individual seat or back components to be replaced without replacing the entire chair.
In commercial seating environments where hundreds or thousands of chairs may be used, this ability to replace individual parts can significantly extend product lifespan.
Seat and Back Materials
The seating surfaces consist of injection-molded polypropylene, a thermoplastic commonly used in institutional seating due to its impact resistance and moisture tolerance.
Key characteristics of the seat design include:
- 100% virgin polypropylene resin for consistent structural integrity
- Contoured backrest geometry intended to improve lumbar support
- Three drainage holes (“weep holes”) in the seat to allow water to escape in outdoor or damp environments
The seat measures approximately 15¾ inches wide by 15¾ inches deep, with a seat height of roughly 17½ inches, which corresponds to standard dining-height seating used in many public assembly environments.
Load Capacity and Testing
One notable technical characteristic of the C600 chair is the load testing performed by independent laboratories.
Testing results include:
- Dynamic load test: 275-pound weight dropped from 6 inches above the seat surface
- Static load-to-failure testing: between 1,925 and 2,245 pounds
Dynamic testing simulates sudden seating forces (for example, someone dropping into the chair). Static load-to-failure testing measures the structural limits of the frame and fasteners under constant pressure.
For a lightweight folding chair, the static load threshold is relatively high and suggests the frame is designed with a substantial safety margin.
Weight and Portability
Each chair weighs approximately 7.1 pounds, placing it in the lightweight category for commercial folding seating.
The low weight has practical implications:
- Faster setup for large events
- Reduced fatigue for staff handling large quantities of chairs
- Lower transportation weight when moving chairs between locations
Despite the low weight, the chair maintains a steel frame rather than aluminum, which helps preserve structural stiffness.
Storage and Stacking Efficiency
Efficient storage is a critical design requirement for event seating. The C600 chair addresses this through a geometry designed for high-density stacking.
Key stacking characteristics include:
- Chairs stack 50 units high without leaning or tipping
- A stack of 50 chairs measures approximately 58 inches tall
This density allows venues to store a large number of chairs in a relatively small storage area, particularly when used with chair transport carts.
Dimensions
Typical overall dimensions of the chair are:
- Height: approximately 38½ inches
- Width: approximately 17½ inches
- Seat height: approximately 17½ inches
These dimensions align with standard folding chairs used for dining, assembly seating, and multipurpose rooms.
Durability and Maintenance Considerations
From a lifecycle standpoint, several design features contribute to durability:
- Powder-coated steel frame resists corrosion and scratching
- Replaceable seat and back components reduce replacement costs
- Steel rivets reinforce high-stress joints
- Polypropylene seating surfaces resist cracking and moisture damage
These design decisions reflect the chair’s intended use in environments where chairs may be transported frequently and handled by different operators.
Typical Applications
The C600 chair is typically used in settings where large numbers of portable seats must be deployed quickly and stored compactly, including:
- Event venues and banquet halls
- Educational institutions
- churches and multipurpose worship spaces
- convention centers
- municipal assembly halls
These environments often require chairs that balance durability with lightweight portability.
Final Perspective
From an engineering standpoint, the EventXpress™ C600 chair represents a conventional but well-optimized folding chair design. Its structural integrity relies primarily on a steel tubular frame combined with replaceable polypropylene seating components. The relatively low weight, strong load-test results, and high stacking density suggest the chair is designed with operational efficiency in mind, particularly for facilities that manage large quantities of seating.
For detailed specifications and product information, see the product page:
